D-310
12" STAINLESS STEEL
REVERSIBLE CAM-LIFT HINGE |
BUILT TO LAST
| FEATURES |
- Stainless Steel 316 Grade Construction
- Corrosion resistant, life-time finish
- Will not pit, crack, flake or peel like chrome plating
- Hygienic & Sanitary
- Wear Resistant Integral Cast Cam Action
- 1/2" Lift
- 1/2" Diameter Main Pin, SS 300 Grade
- Corrosion Resistant
- Reversible
- Long Life Operation
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
13-7/16" |
| Material |
- |
316 Stainless Steel |
Finishes
|
- |
Cast
SS
Satin
SS
Brite
ss
|
| Offsets |
- |
Flush, 1
1/4", 1 3/8", 1 5/8"
*Base shims 1/8" thick avail. |
| Screw
Holes |
- |
¼" Hole, 82
degrees Countersunk |
| Shipping
Weight |
- |
8.25 lbs./each
(stainless) |
| Hinge
Load Capacity |
- |
500 lbs., 1 pair
(stainless) |
|
|
|

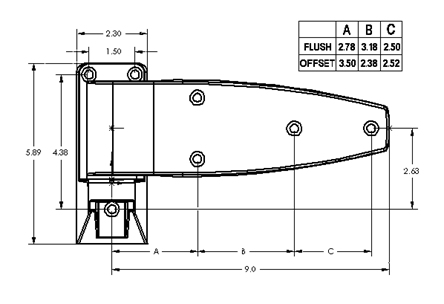

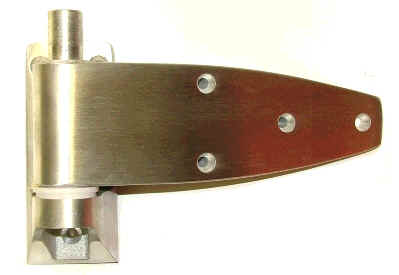

D-690-S
10" REVERSIBLE SPRING HINGE |
| FEATURES |
- Reverse hinge swing in seconds for right or left hand door,
just slide blade off and reverse.
- Strong spring action adds extra closing force to overcome
air resistance on heavy walk-in doors
- Heavy duty 3/8" diameter stainless steel pin
- Super sized, heavy duty, self lubricating nylon cams deliver
smooth trouble free operation, closing door with minimum
effort
- Cam lift action reduces gasket wear
- Built in dwell, holds door open beyond 90 degrees
- Doors lift off without disassembly or removing hinges
- Hole patterns compatible with D-69 hinges
- Cam lift only, specify D-690
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
10" |
| Material |
- |
Aluminum |
| Finishes |
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
Endurakote Nylon |
| Offsets |
- |
Flush, 1 1/8", 1
1/4", 1 3/8", 1 1/2", 1 5/8", 1 3/4" |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Aluminum 2.4 lbs./each |
| Hinge
Load Capacity |
- |
200 lbs., 1 pair
aluminum |
|
|
|

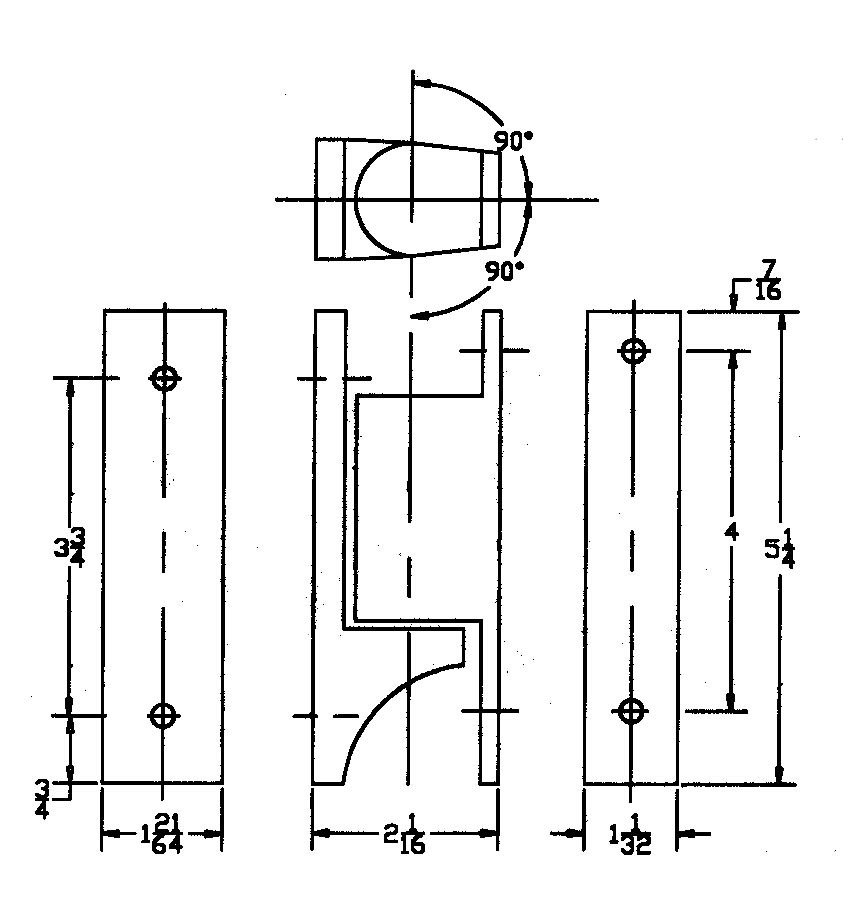

D-34-MST
DOUBLE ACTING IMPACT TRAFFIC DOOR HINGE |
| FEATURES
|
- Easy opening self closing
- Self-lubricating, wear resistant nylon and delrin cams,
½" lift
- Simple installation
- Lift-off capability
- High strength aluminum
- Corrosion resistant alloy
- Economical to use
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
5 1/4" |
| Overall
Width |
- |
1 5/8" |
| Material |
- |
Aluminum |
Finishes
|
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
*Other finishes available |
| Screw
Holes |
- |
D34MS,
¼" Hole,
82°
Countersunk
|
| Shipping
Weight |
- |
Aluminum 1.5 lbs./pair |
| Hinge
Load Capacity |
- |
100 lbs., 1 pair
Aluminum |
|
|

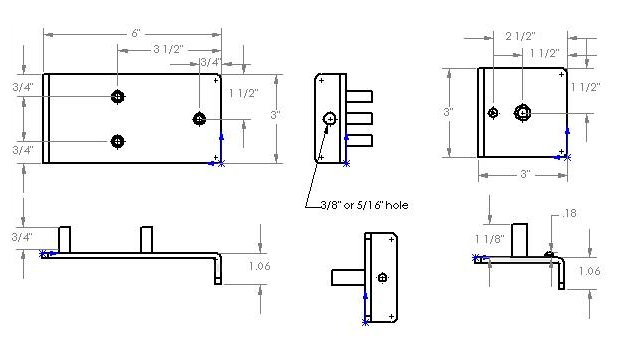

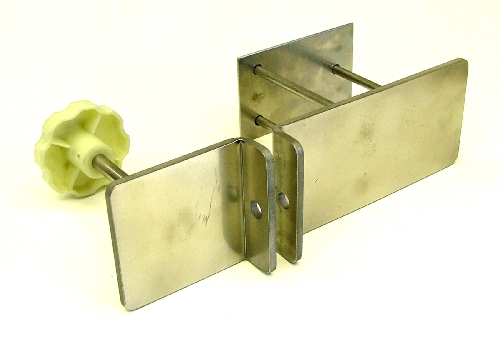

D-252
ALL STAINLESS STEEL LOCKING
BAR ASSEMBLY |
| FEATURES |
SPECIFICATIONS |
- Heavy duty 3/16" thick stainless steel
construction
- Ultimate security blind hole mounting
- Flush mount
- Inside safety release w/ glow-in-the-dark
knob
- Padlock provision 5/16" or 3/8"
diameter
- Reversible for right or left hand swing
doors
- Includes inside door wear guard plate
- Corrosion resistant
|
| Overall
Length |
- |
9" |
| Material |
- |
303 Stainless Steel |
| Finishes |
- |
Satin |
| Offsets |
- |
Flush or Offset |
| Shipping
Weight |
- |
2.3 lbs. each |
| Note |
- |
Specify wall thickness |
|
|
|
