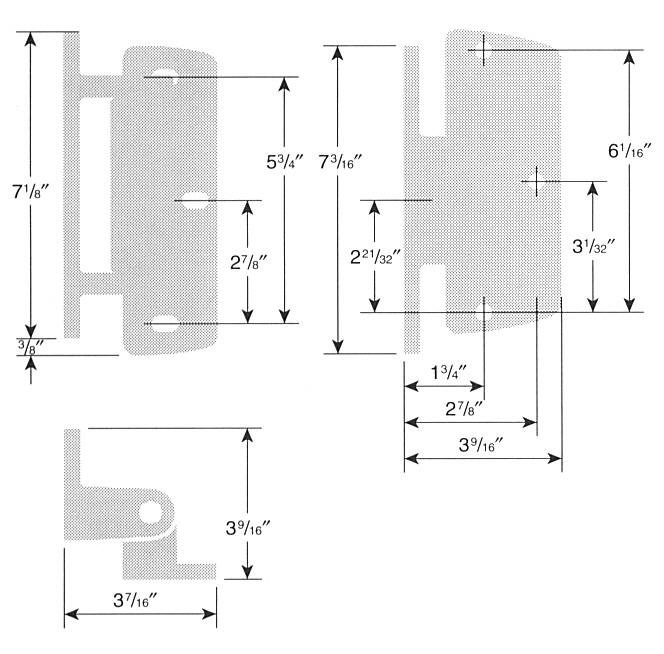

D980          HEAVY DUTY REVERSIBLE EDGE MOUNT HINGE

FEATURES
  • Heavy duty 2 post edge mount
  • Self-lubricating wear resistant Nylon and Delrin cams
  • 5/16" lift
  • Reversible for RH and LH doors
  • Smooth opening and closing
  • Two high strength alloys, manganese bronze or aluminum

SPECIFICATIONS
Overall Length  -  7½"
Overall Width  -  3 3/8"
Material  -  Manganese Bronze
Aluminum
Finishes  -  Brite Chrome
Endurakote
*Other finishes available
Offsets  -

2½", 3½"

Other Offsets Specify
Screw Holes  -  3/8" Screw or 5/16" Screw
Shipping Weight  -  Bronze 12.0#/pair
Hinge Load Capacity  -  200 lbs. 1 pair bronze
