| FEATURES |
- Unbreakable wide body handle
- Available with keyed cylinder lock or without
- Padlocking provision standard (3/8" diameter)
- Hidden screw holes, tamper free
- Two inside safety releases available:
98° turn cam release handle sm. knob or disassembly type
release knob
- Handle bumper to protect door finish
- High strength corrosion resistant alloy
- Designed especially for magnetic gasket doors
|
|
|
SPECIFICATIONS
|

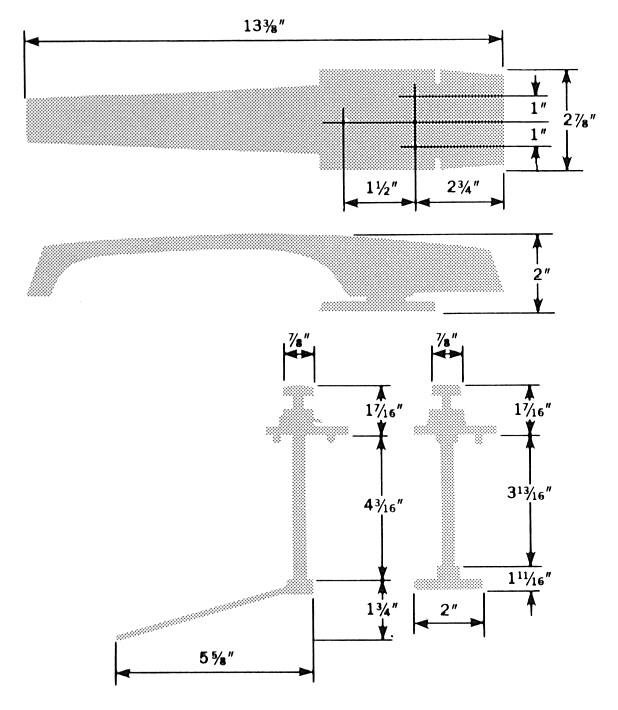

| Overall
Length |
- |
13-3/8" |
| Material |
- |
Aluminum or Zinc |
| Finishes |
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
*Other finishes available |
| Offsets |
- |
Flush, 1-1/8",
1-1/4", 1-3/8", 1-5/8", 1-3/4" |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Aluminum 2.5 lbs. each |
|
Note: Specify
offset, release type and wall thickness
|
|
