| FEATURES |
- Heavy duty wide handle
- Key locking
inside safety release on door
No strike or safety release on jamb
Reduced installation costs, easy assembly
Eliminates alignment problems
Two hole mountings available:
- thru-hole mounting w/ cap plugs
- or tamper proof blind holes
Unique design reduces snagging of clothing common with
conventional latch/strike handles
|
|
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
14" |
| Material |
- |
Aluminum |
Finishes
|
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
Endurakote
Nylon
*Other finishes available
|
| Offsets |
- |
Flush or Offset |
| Thru Hole |
- |
¼" Cap Screw |
| Blind Holes |
- |
Drilled & Tapped ¼-20
Machine
Screw
|
| Weight |
- |
1.6 lbs. |
|

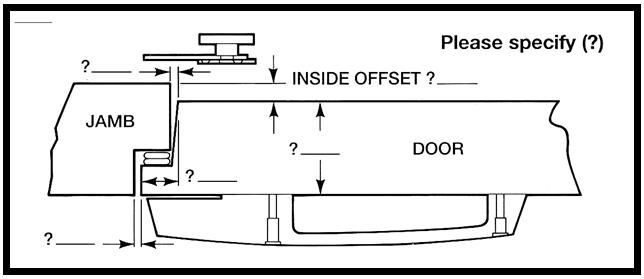

Note: Specify wall thickness
|
|
