| FEATURES |
- Easy lever action, long life
- Tamper free - all fasteners concealed
- Padlocking provision
- Equipped with Stainless Steel pin and low friction bearings
- Designed especially for light weight magnetic gasket walk-in
doors
- High strength, corrosion resistant alloy
- Inside safety release is optional and extra Specify D83SR
and wall thickness when ordering
|
|
|

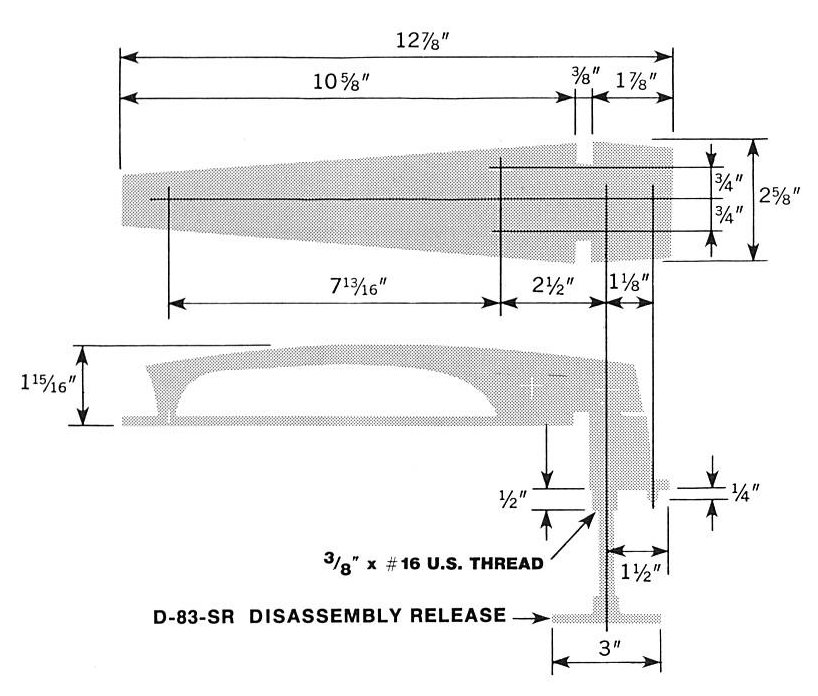

SPECIFICATIONS
|
| Overall
Length |
- |
12-7/8" |
| Material |
- |
Aluminum or Zinc |
| Finishes |
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
*Other finishes available |
| Offsets |
- |
Flush, 1-1/4",
1-5/8", 1-3/4" |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Aluminum 1.5 lbs. each
Zinc 3.3 lbs. each |
|
Note: Specify
offset
|
|
