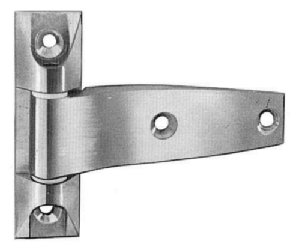

| FEATURES |
- High Strength Aluminum
- Corrosion resistant
- Long life wear resistant Delrin bearings
- 3/8" diameter Stainless Steel pin, 1/2" diameter
option
- Contemporary styling, easy cleaning
- reversible swing
- Reliable, efficient and economical
- Versatile, unlimited applications
- Optional 3/8" countersunk holes available
|
|
|

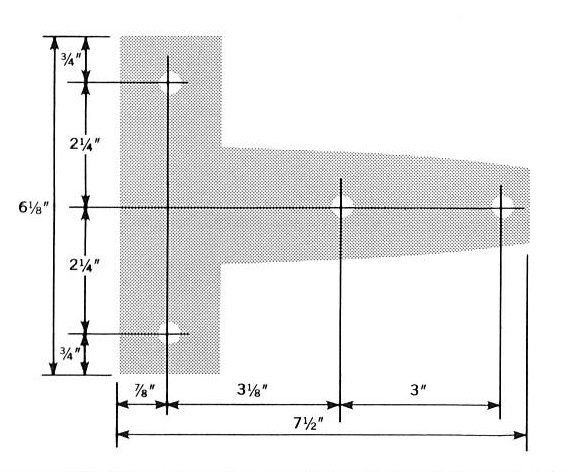

SPECIFICATIONS
|
| Overall
Length |
- |
7½" |
| Material |
- |
Aluminum |
| Finishes |
- |
Polished Aluminum
Brushed Aluminum
Plain Aluminum
*Other finishes available |
| Offsets |
- |
Flush, 1-1/4"
*Base shims, 3/8" thick avail. |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
2.2 lbs./pair |
| Hinge
Load Capacity |
- |
175 lbs., 1 pair |
|
