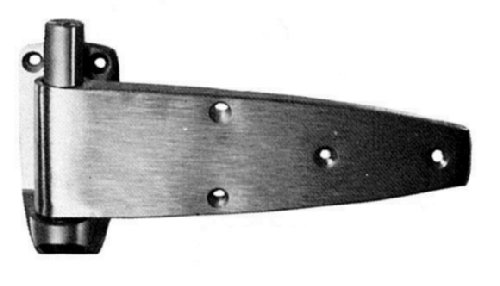

| FEATURES |
- Non-reversible design for reliable spring action
- Heavy duty spring
- Contemporary styling
- Self-lubricating, wear resistant Nylon and Delrin cams,
½" lift
- Corrosion resistant alloy
- Durable construction, long life
- Tamper-proof spring housing eliminated unqualified field
adjustment
- Designed especially for foam construction
- Specify Left or Right Hand when Ordering
|
|
|

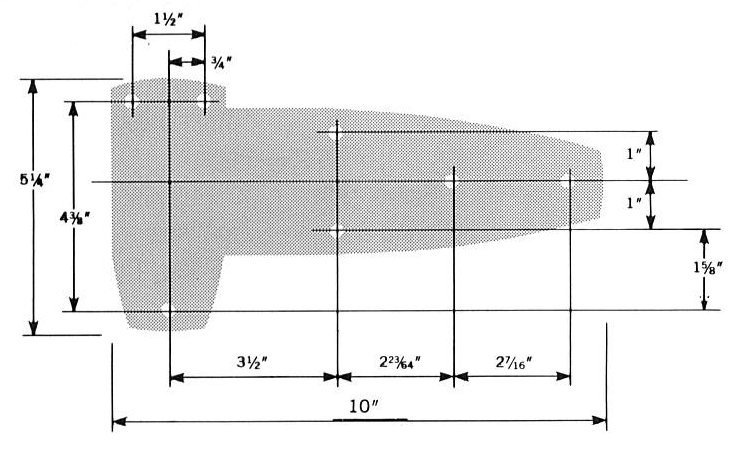

SPECIFICATIONS
|
| Overall
Length |
- |
10" |
| Material |
- |
Aluminum or Zinc |
| Finishes |
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
*Other finishes avail. |
| Offsets |
- |
Flush, 1 1/8", 1
1/4", 1 3/8", 1 1/2", 1 5/8", 1 3/4", 1
7/8", 2" |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Aluminum 3.5 lbs./pair |
| Hinge
Load Capacity |
- |
150 lbs., 1 pair
aluminum |
|
