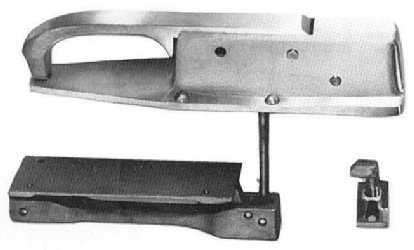

D60          POSITIVE SAFETY LATCH

FEATURES
  • Easy opening and closing, only 3 lbs. pull required
  • Trouble free operation, only 3 moving parts
  • Tamper-proof security feature, hidden rear mounting screw prevents latch removal
  • Fully interchangeable with all small latches used in last 60 years
  • Complete assembly, latch, strike and release
  • Available with keyed cylinder lock
  • Padlocking provision, 3/8" dia.
  • Safety release doubles as closing pull handle
  • Gentle push safety release assures instant access to outside when latched, key locked or padlocked
  • Adjustable strike, graduations 1/20" to compensate for gasket wear
  • Unique strike design eliminates side thrust on door

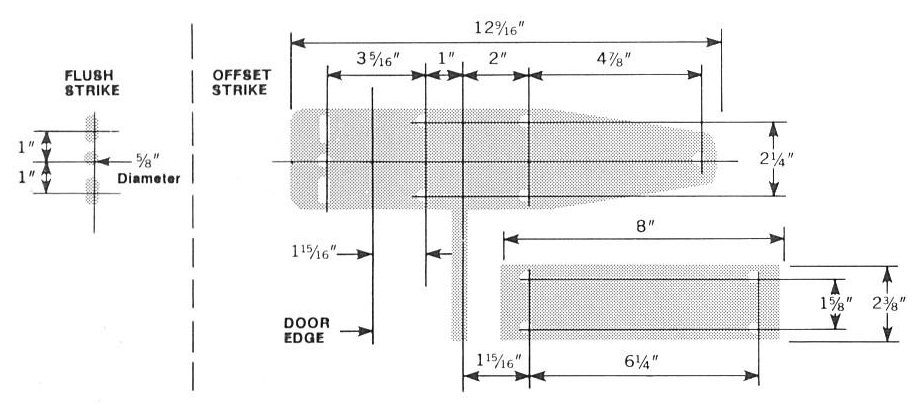

SPECIFICATIONS
Overall Length  -  12-9/16"
Material  -  Aluminum or Zinc
Finishes  -  Polished Aluminum
Brushed Aluminum
Plain Aluminum
Polished Chrome
Brushed Chrome
Offsets  -  Flush, 1", 1-1/8", 1-1/4", 1-5/8", 1-1/2", 1-3/4", 2"
Screw Holes  -  ¼" Hole, 82° Countersunk
Shipping Weight  -  Aluminum 4.3 lbs. each
Zinc 6.3 lbs. each

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-60 Positive Safety Latch - No Lock - As Cast

ORDER: D-60 Positive Safety Latch - No Lock - Brushed

ORDER: D-60 Positive Safety Latch - No Lock - Brite

ORDER: D-60 Positive Safety Latch - No Lock - Chrome

ORDER: D-60 Positive Safety Latch - With Lock - As Cast

ORDER: D-60 Positive Safety Latch - With Lock - Brushed

ORDER: D-60 Positive Safety Latch - With Lock - Brite

ORDER: D-60 Positive Safety Latch - With Lock - Chrome

For OEM Pricing Contact Us Directly
