| FEATURES |

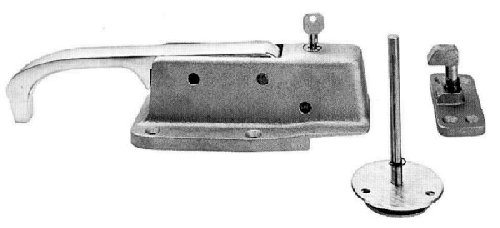

- Complete assembly includes latches, strike
and safety releases
- Push knob inside safety release assures
instant access to outside when latched, key locked, padlocked
or both
- Long life operation, only 3 moving parts
- Easy opening and closing
- Available with keyed cylinder lock
- Padlocking provision, 3/8 diameter
- High strength corrosion resistant aluminum
- Light or heavy spring pressure available
- Inside safety release labels available

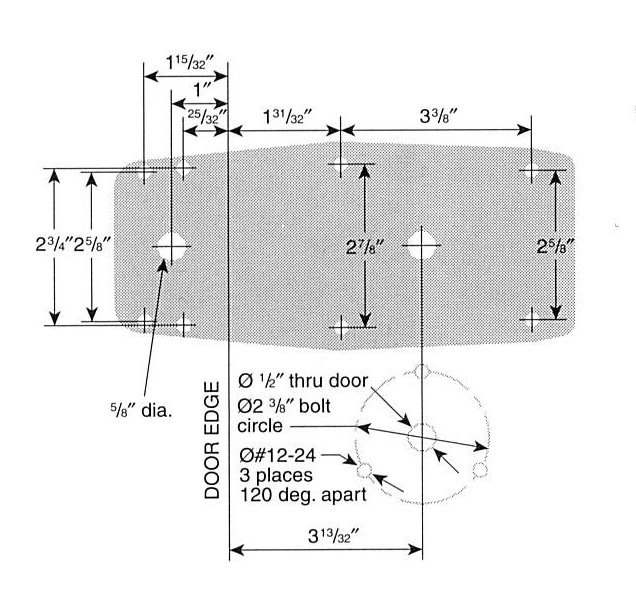

- Mounting template drawings available
- Interchangeable hole patterns available
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
12 5/8" |
| Material |
- |
Aluminum |
Finishes
|
- |
Brite
(Polished)
Brushed
Plain (Cast)
Endurakote
|
Offsets
|
- |
Flush, 5/8"
Other Offsets Specify |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Aluminum 3.5 lbs. each |
|
Note: When ordering, specify
with or without lock, flush or offset, finish and door thickness.
|
|
