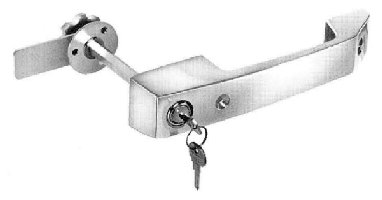

| FEATURES
|
- Complete handle assembly mounts on door,
eliminating alignment problems
- Heavy duty corrosion resistant cam lock
- Two inside release materials available
|
- CRS zinc plated safety
release rod with
non-conducting slip-on tube
- Freeze proof Nylon safety release rod |
- Dual acting ¼ turn/disassembly type safety
release knob
- 180° turn locking, reversible for RH or LH
doors
- Mounts horizontally or vertically
- High strength corrosion resistant alloy
- Wear plate for safety release (optional)
- No lock handle, specify D400
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
9 9/16" |
| Material |
- |
Aluminum |
| Finishes |
- |
Brite (Polished)
Brushed
Endurakote |
Offsets
|
- |
Flush
Other Offsets (Specify) |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Blind Hole |
- |
¼-20 Machine Screw |
| Shipping
Weight |
- |
Aluminum 1.45# |
|

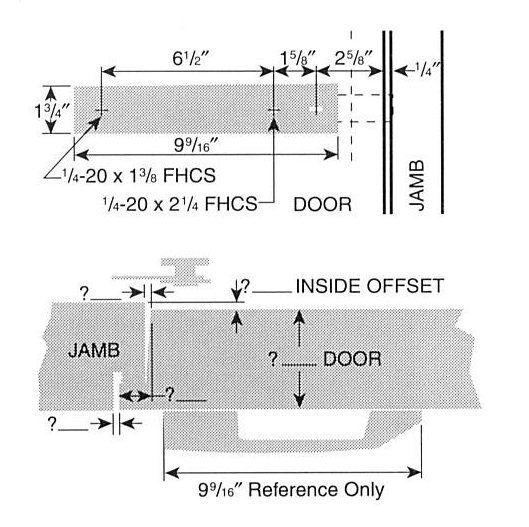

Note: When ordering, specify
drawing dimensions, flush
or offset, inside release material, finish and door
thickness. (Installation instructions furnished)
|
|
