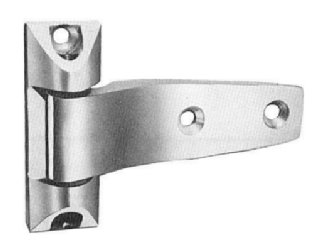

D4A          SMALL DOOR, REACH-IN HINGE

FEATURES
  • Contemporary styling
  • Reversible swing
  • Long life wear resistant Delrin bearings
  • Reliable, efficient and economical
  • Versatile
  • Narrow base for small service doors
  • 5/16" diameter Stainless Steel pin
  • Corrosion resistant

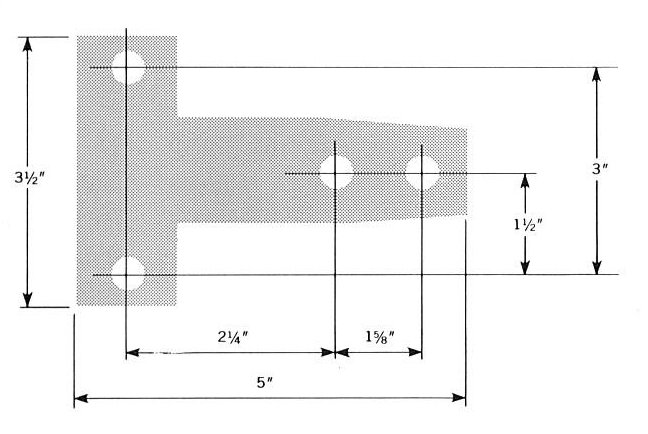

SPECIFICATIONS
Overall Length  -  5"
Material  -  Aluminum
Finishes  -  Polished Aluminum
Brushed Aluminum
*Other finishes available
Offsets  -  Flush, 1-1/4"
*Base shims, 3/8" thick avail.
Screw Holes  -  ¼" Hole, 82° Countersunk
Shipping Weight  -  .8 lbs./pair
Hinge Load Capacity  -  60.0 lbs./pair

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-4A 5in Small Door Hinge - As Cast

ORDER: D-4A 5in Small Door Hinge - Brite

ORDER: D-4A 5in Small Door Hinge - Brushed

For OEM Pricing Contact Us Directly
