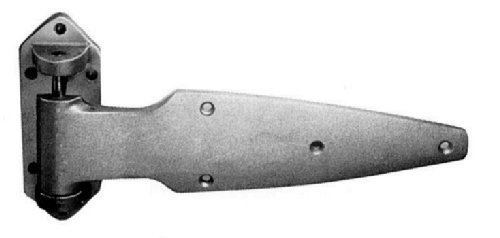

D38          17" REVERSIBLE LARGE DOOR CAM-LIFT HINGE

FEATURES
  • 17" reversible large door lift hinge
  • Wear resistant cast metal cams, ½" lift
  • Super high strength Aluminum alloy
  • Rugged and economical
  • Long life operation
  • Manganese Bronze optional material


SPECIFICATIONS

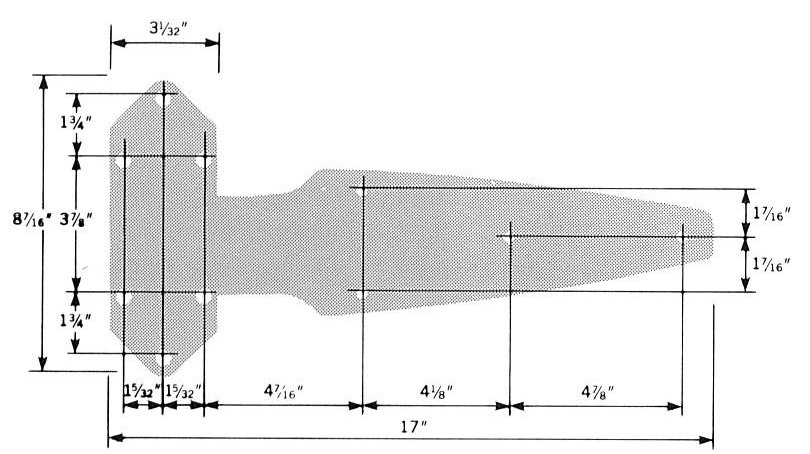

Overall Length  -  17"
Material  -  Aluminum or Manganese Bronze
Finishes  -  Plain Aluminum
Polished Chrome
*Other finishes available
Offsets  -  Flush, 1", 1 1/8", 1¼", 1¾", 1 7/8", 2"
*Base shims 1/8" thick avail.
Screw Holes  -  Base Drilled 7/16" Hole, 3/8" Lag Bolt Strap: 1/4" Hole, 82 degrees Countersunk Optional Strap Drilling available.
Shipping Weight  -  Aluminum 6.6lbs./pair
Bronze 19.8 lbs./pair
Hinge Load Capacity  -  325 lbs., 1 pair Aluminum

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-38 17in Large Door Cam Lift Hinge - Brite Aluminum

ORDER: D-38 17in Large Door Cam Lift Hinge - Cast Aluminum

ORDER: D-38 17in Large Door Cam Lift Hinge - Cast Chrome

ORDER: D-38 17in Large Door Cam Lift Hinge - Polished Chrome

For OEM Pricing Contact Us Directly
