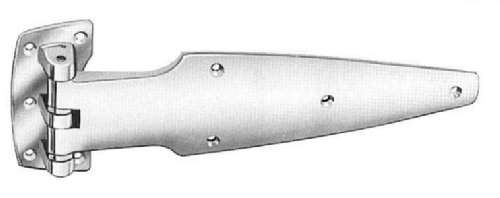

| FEATURES |
- 3/8" diameter #304 Stainless Steel pin
- Two Hardened steel ball bearings
- Three post base construction
- Heavy reinforced Manganese Bronze construction
- Available with 135° stop feature
- Reversible for right or left hand by changing bearing
- Also available in high strength Aluminum
- 23" Version available, Specify D37
|
|
|
SPECIFICATIONS
|

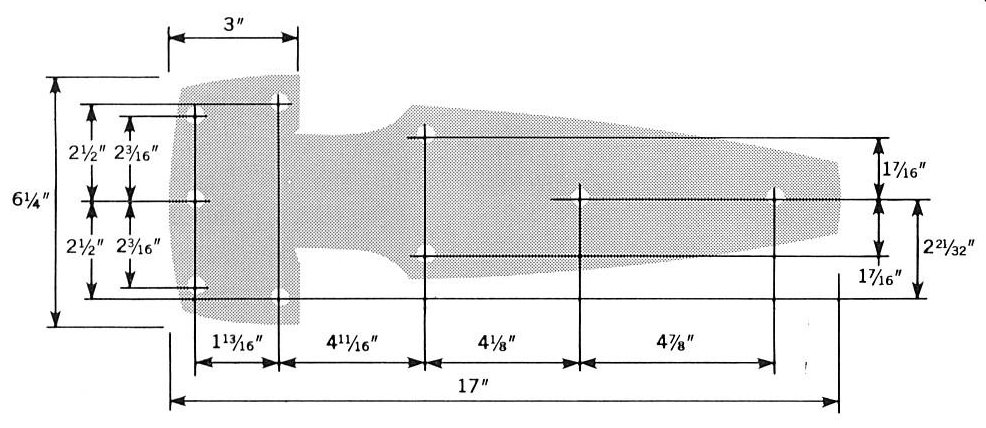

| Overall
Length |
- |
17" |
| Material |
- |
Manganese Bronze or
Aluminum |
| Finishes |
- |
Polished Chrome
Plain Aluminum
*Other finishes available |
| Offsets |
- |
Flush, 1 1/8,
1-1/4"
*Other offsets available
*Base shims 1/8" thick avail. |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
Bronze 13.0 lbs./pair
Aluminum 4.0 lbs./pair |
| Hinge
Load Capacity |
- |
250 lbs., 1 pair
aluminum |
|
