| FEATURES
|
- Heavy duty edge mount for freezers or walk-ins
- Reversible swing
- Self-lubricating, wear resistant Nylon and Delrin cams,
½" lift
- Easy opening, smooth positive self-closing
- Lift-off capability
- Two base hole variations available

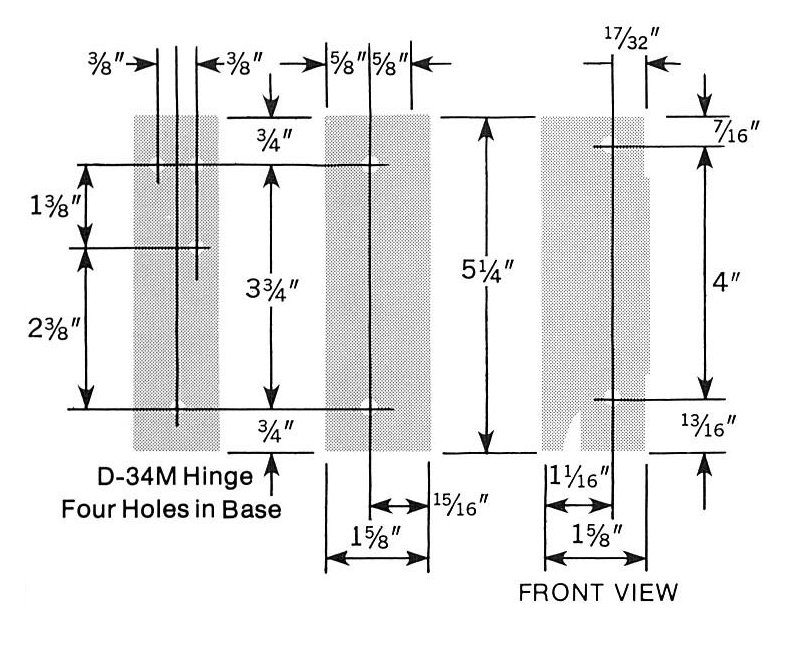

2 holes in base - specify D-34MS
4 holes in base drilled and countersunk 3/16" diameter
for No. 10 screw - specify D-34M
- Corrosion resistant alloy
|
|
|
SPECIFICATIONS
|
| Overall
Length |
- |
5 1/4" |
| Overall
Width |
- |
1 5/8" |
| Material |
- |
Aluminum or Zinc |
Finishes
|
- |
Polished Aluminum
Brushed Aluminum
Polished Chrome
Brushed Chrome
*Other finishes avail. |
| Screw
Holes |
- |
D34MS,
¼" Hole,
82°
Countersunk
|
| Shipping
Weight |
- |
Aluminum 1.5 lbs./pair |
| Hinge
Load Capacity |
- |
100 lbs., 1 pair
Aluminum |
|
