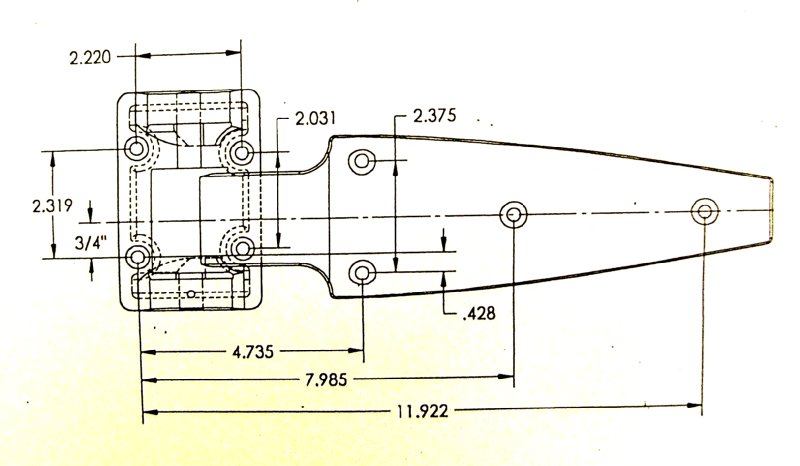

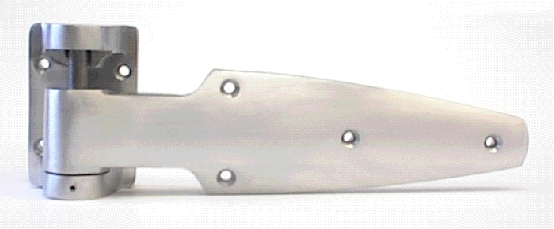

D310          12" HEAVY DUTY REVERSIBLE CAM-LIFT HINGE

FEATURES
  • Available in Aluminum, Bronze or Stainless Steel
  • Heavy Duty
  • Wear Resistant Integral Cast Cam Action
  • 1/2" Lift
  • 1/2" Diameter Main Pin, SS 300 Grade
  • Corrosion Resistant
  • Reversible
  • Long Life Operation

SPECIFICATIONS
Overall Length  -  13 7/16"
Material  -  Stainless Steel, Aluminum, or Bronze
Finishes
  -

Cast Finish

Satin Polish

Brite Polish

Edurakote Nylon

Polished Chrome
*Other finishes available
Offsets  -  Flush, 1 1/4", 1 3/8", 1 5/8"
*Base shims 1/8" thick avail.
Screw Holes  -  ¼" Hole, 82 degrees Countersunk
Shipping Weight  -  8.25 lbs./each (stainless)
Hinge Load Capacity  -  500 lbs., 1 pair (stainless)

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-310 12in Heavy Duty Cam-Lift Hinge - As Cast

ORDER: D-310 12in Heavy Duty Cam-Lift Hinge - Brite

ORDER: D-310 12in Heavy Duty Cam-Lift Hinge - Brushed

ORDER: D-310 12in Heavy Duty Cam-Lift Hinge - Endurakote

ORDER: D-310 12in Stainless Steel Cam-Lift Hinge

For OEM Pricing Contact Us Directly
