| FEATURES |
- Positive Latching
- Fully interchangeable with all small latches used in last 60
years
- Four hole patterns available
- Padlocking provision, 3/8" dia.
- Adjustable offsets
- Wear resistant
- Industry standard, 30 years
|
|
|

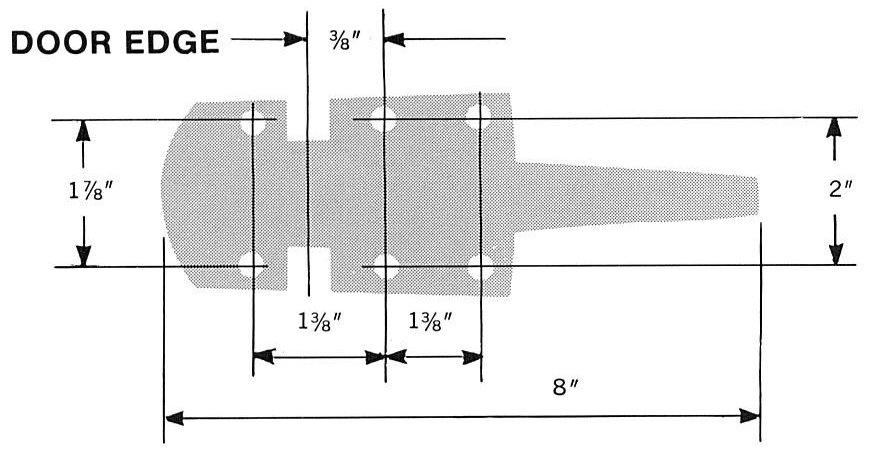

SPECIFICATIONS
|
| Overall
Length |
- |
8" |
| Material |
- |
Bronze, Zinc or
Aluminum |
Finishes
|
- |
Polished Chrome
Brushed Aluminum
*Other finishes available |
| Offsets |
- |
Flush, 1",
1-1/8", 1-1/4", 1-3/4" |
Screw
Holes
|
- |
Drilled and
Countersunk, No.10 Screw. |
|
Specify hole pattern |
- |
D23, D23-40, D23-146B,
D23-GR |
|
Shipping Weight
|
- |
Bronze 2.2 lbs. each
Aluminum .7 lbs. each |
|
