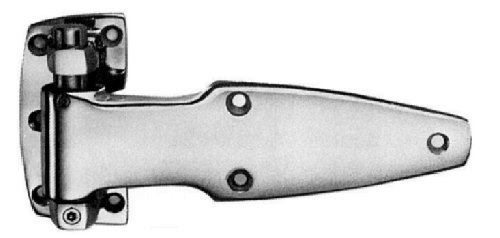

| FEATURES |
- Lifetime ¾" diameter case hardened steel cams
- ½" rise
- Heavy reinforced Manganese Bronze construction
- Smooth easy action
- Industry standard for exceptionally rugged installations
|
|
|

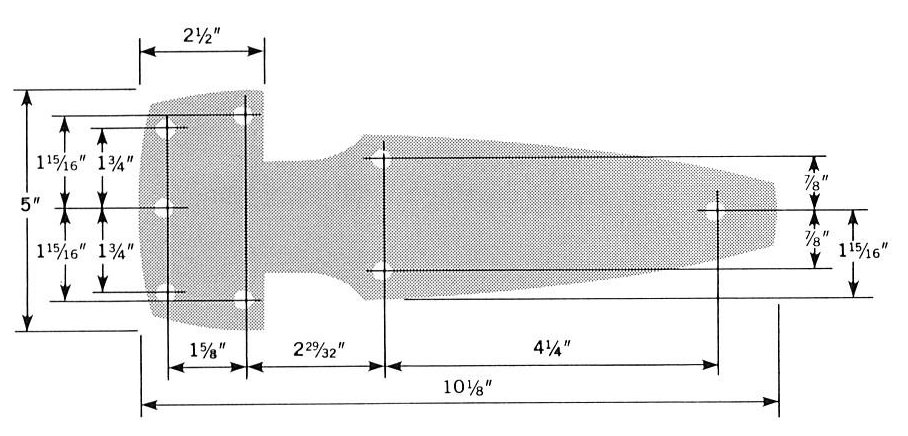

SPECIFICATIONS
|
| Overall
Length |
- |
10 1/8" |
| Material |
- |
Manganese Bronze |
Finishes
|
- |
Polished Chrome
*Other finishes available |
Offsets
|
- |
Flush, 1 1/8", 1
1/4", 1 3/8"
*Base shims 1/8" thick avail. |
| Screw
Holes |
- |
¼" Hole, 82*
Countersunk |
| Shipping
Weight |
- |
6.5 lbs./pair |
| Hinge
Load Capacity |
- |
200 lbs., 1 pair
|
|
