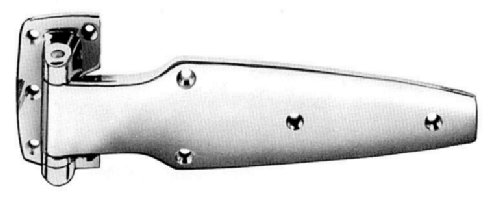

| FEATURES |
- 3/8" diameter #304 Stainless Steel pin
- Hardened steel ball bearing
- Heavy reinforced Manganese Bronze construction
- Available with 135° stop feature
- Reversible for right or left hand by changing bearing
- Available as a slider hinge - specify D1PS Hinge same as D1P
without ball bearing. Use in combination with D31 12"
cam-lift hinge. Permits ½" vertical floating action as
door rises.
|
|
|

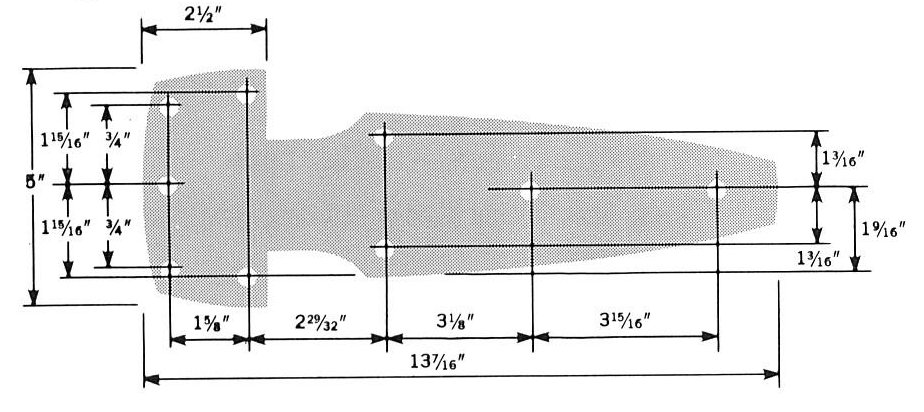

SPECIFICATIONS
|
| Overall
Length |
- |
13 7/16" |
| Material |
- |
Manganese Bronze
or
Aluminum
|
Finishes
|
- |
Polished Chrome
Cast Aluminum
*Other finishes available
|
Offsets
|
- |
Flush, 1-1/8",
1-1/4"
*Other offsets available
*Base shims 1/8" thick avail. |
| Screw
Holes |
- |
¼" Hole, 82°
Countersunk |
| Shipping
Weight |
- |
7.0 lbs./pair bronze |
| Hinge
Load Capacity |
- |
250 lbs., 1 pair bronze |
|
