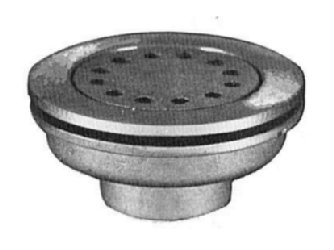

D19, D29          STRAIGHT DRAIN TRAPS

FEATURES
  • Long wearing
  • Corrosion resistant Aluminum
  • Includes drain trap, ring and screen
  • Neoprene gasket for extra tight seal

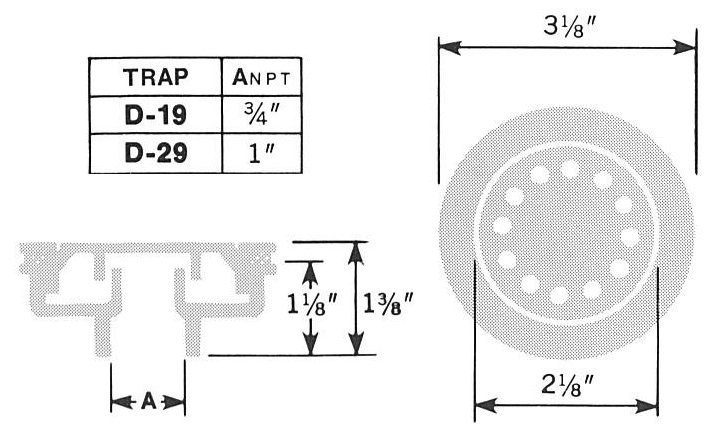

  • 3/4" straight, specify D19
  • 1" straight, specify D29
  • No screws or brazing needed
  • Trap ring screws into place for tight seal
  • Designed for minimum dimension between top and bottom pans
  • Continuous drainage, no backup
  • Available in brass for special applications
SPECIFICATIONS
Material  -  Aluminum or Brass
Finishes
  -  Plain Aluminum
Plain Brass
Shipping Weight  -  .3 lbs. each

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-19 3/4in Straight Drain Trap - Aluminum

ORDER: D-29 1in Straight Drain Trap - Aluminum

ORDER: D-29 1in Straight Drain Trap - Brass

ORDER: Neoprene Gaskets

For OEM Pricing Contact Us Directly
