D18, D28          ELBOW DRAIN TRAPS

FEATURES
  • Long wearing
  • Corrosion resistant Aluminum
  • Includes drain trap, ring and screen
  • Neoprene gasket for extra tight seal
  • 3/4" elbow, specify D18
  • 1" elbow, specify D28
  • No screws or brazing needed
  • Trap ring screws into place for tight seal
  • Designed for minimum dimension between top and bottom pans
  • Available in brass for special applications

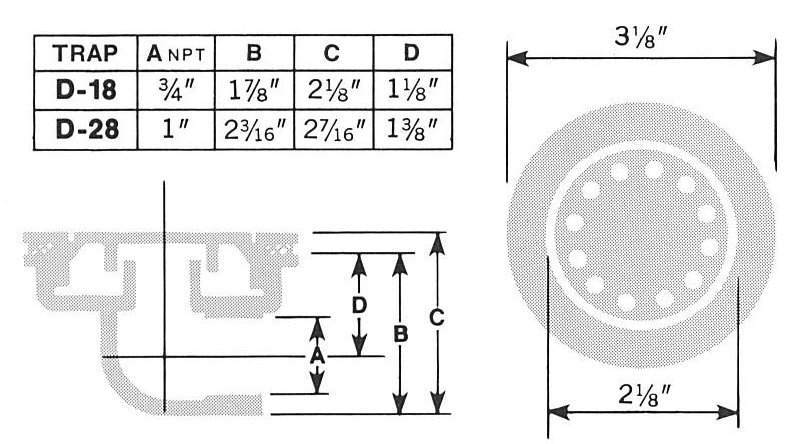

SPECIFICATIONS
Material  -  Aluminum or Brass
Finishes
  -  Plain Aluminum
Plain Brass
Shipping Weight  -  .37 lbs. each

ORDER REPLACEMENT HARDWARE ONLINE

ORDER: D-18 3/4in Elbow Drain Trap - Aluminum

ORDER: D-28 1in Elbow Drain Trap - Aluminum

ORDER: D-28 1in Elbow Drain Trap - Brass

ORDER: Neoprene Gaskets

For OEM Pricing Contact Us Directly
